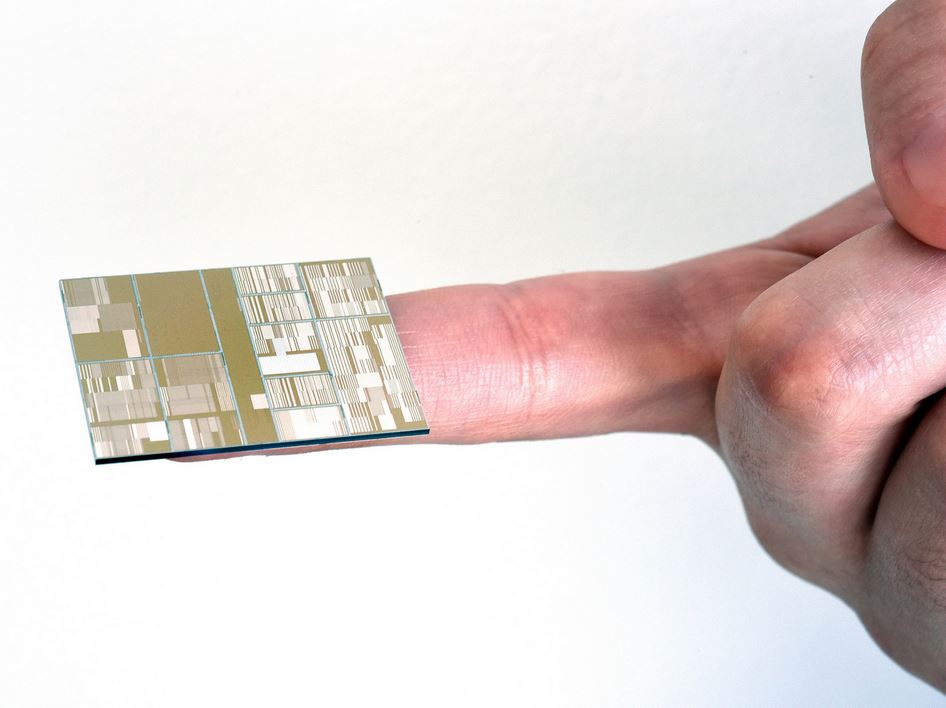

Industry’s First 7nm Node Test Chips Produced by IBM Research Alliance

Credit: IBM

Microprocessors utilizing 22nm and 14nm technology power today’s servers, cloud data centers and mobile devices, and 10nm technology is well on the way to becoming a mature technology. The IBM Research-led alliance achieved close to 50 percent area scaling improvements over today’s most advanced technology, introduced SiGe channel material for transistor performance enhancement at 7nm node geometries, process innovations to stack them below 30nm pitch and full integration of EUV lithography at multiple levels. These techniques and scaling could result in at least a 50 percent power/performance improvement for next generation mainframe and POWER systems that will power the Big Data, cloud and mobile era.

“Governor Andrew Cuomo’s trailblazing public-private partnership model is catalyzing historic innovation and advancement. Today’s announcement is just one example of our collaboration with IBM, which furthers New York State’s global leadership in developing next generation technologies,” said Dr. Michael Liehr, SUNY Poly Executive Vice President of Innovation and Technology and Vice President of Research. “Enabling the first 7nm node transistors is a significant milestone for the entire semiconductor industry as we continue to push beyond the limitations of our current capabilities.”

“Today’s announcement marks the latest achievement in our long history of collaboration to accelerate development of next-generation technology,” said Gary Patton, CTO and Head of Worldwide R&D at GLOBALFOUNDRIES. “Through this joint collaborative program based at the Albany NanoTech Complex, we are able to maintain our focus on technology leadership for our clients and partners by helping to address the development challenges central to producing a smaller, faster, more cost efficient generation of semiconductors.”

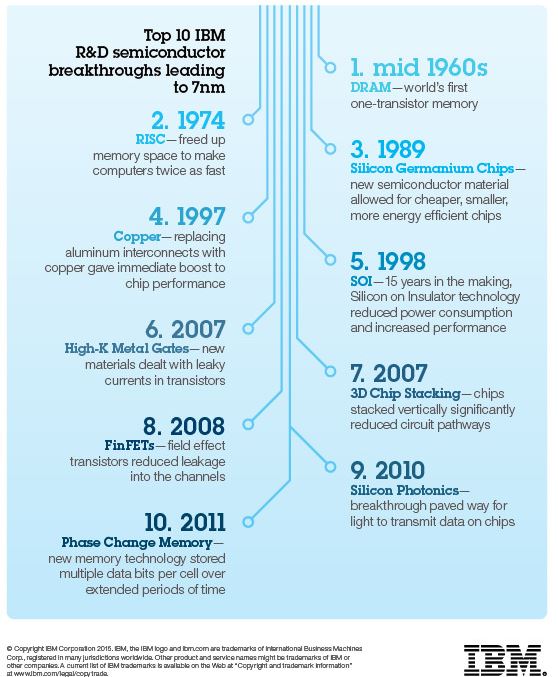

The 7nm node milestone continues IBM’s legacy of historic contributions to silicon and semiconductor innovation. They include the invention or first implementation of the single cell DRAM, the Dennard Scaling Laws, chemically amplified photoresists, copper interconnect wiring, Silicon on Insulator, strained engineering, multi core microprocessors, immersion lithography, high speed SiGe, High-k gate dielectrics, embedded DRAM, 3D chip stacking and Air gap insulators.

IBM and SUNY Poly have built a highly successful, globally recognized partnership at the multi-billion dollar Albany NanoTech Complex, highlighted by the institution’s Center for Semiconductor Research (CSR), a $500 million program that also includes the world’s leading nanoelectronics companies. The CSR is a long-term, multi-phase, joint R&D cooperative program on future computer chip technology. It continues to provide student scholarships and fellowships at the university to help prepare the next generation of nanotechnology scientists, researchers and engineers.
