Myths And Mystery Pipes Of The Mound Builders

% of readers think this story is Fact. Add your two cents.







In the early 1900s, an archaeologist, William Mills, dug up a treasure-trove of carved stone pipes that had been buried almost 2,000 years earlier. Mills was the first to dig the Native American site, called Tremper Mound, in southern Ohio. And when he inspected the pipes, he made a reasonable – but untested – assumption. The pipes looked as if they had been carved from local stone, and so he said they were. That assumption, first published in 1916, has been repeated in scientific publications to this day. But according to a new analysis, Mills was wrong.

In a new study, the first to actually test the stone pipes and pipestone from quarries across the upper Midwest, researchers conclude that those who buried the pipes in Tremper Mound got most of their pipestone – and perhaps even the finished, carved pipes – from Illinois.


The Hopewell people used distinctive stone pipes, often with effigies on them, like this owl pipe found in an early village excavation in Illinois. Watch a slide show to see more pipes.
Photo by L. Brian Stauffer

The researchers spent nearly a decade on the new research. They first collected the mineralogical signatures of stone found in traditional pipestone quarries in Illinois, Kansas, Michigan, Minnesota, Missouri and Ohio. Then they compared the material found in those quarries to the mineralogical makeup of the artifacts left behind by the people of Tremper Mound.

Less than 20 percent of the 111 Tremper Mound pipes they tested were made from local Ohio stone. About 65 percent were carved from flint clay found only in northern Illinois and 18 percent were made of a stone called catlinite – from Minnesota.


Illinois State Archaeological Survey director Thomas Emerson and his colleagues discovered that pipestone pipes buried roughly 2,100 years ago in a mound site in southeast Ohio came from stone gathered in northern Illinois.
Credit: Photo by L. Brian Stauffer

The researchers are still puzzling over how most of these materials made it to Ohio from Illinois, and are baffled by another new discovery. Pipes from a site only about 40 miles north of Tremper Mound, an elaborate cluster of immense mounds known as Mound City, were carved almost entirely from local stone. Mound City was inhabited at about the same time or shortly after Tremper Mound, and the pipes found there are stylistically very similar to the Tremper pipes. (See aslideshow of some pipes.)

The researchers describe their findings in a paper in American Antiquity.

These results should remind archaeologists that things are not as simple as they sometimes appear, saidThomas Emerson, the principal investigator on the study and the director of theIllinois State Archaeological Survey (ISAS) at the University of Illinois.



This Hopewell era platform pipe (made of Sterling, Illinois, pipestone) was found in La Salle county, Illinois, in the 1920s.


Photo: L. Brian Stauffer (ISAS artifact)


“This is how mythology becomes encased in science,” he said.

The study also confirms that the people who produced these pipestone artifacts, known today as members of the Hopewell tradition, were more diverse and varied in their cultural practices than scientists once appreciated, Emerson said.

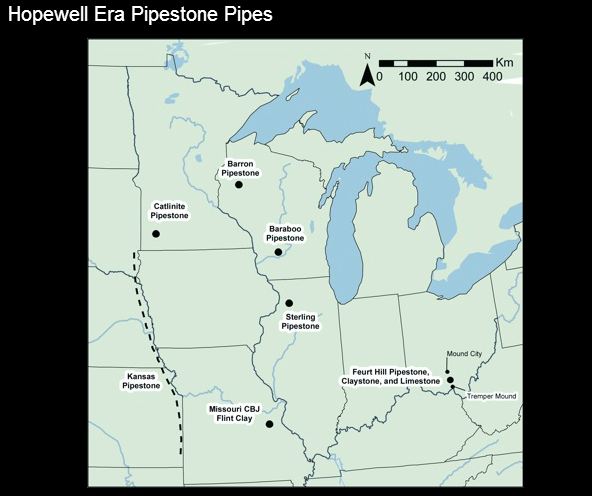

Researchers tested the mineralogical profiles of stone from sites across the upper Midwest to determine the origin of stone pipes found at Tremper Mound in Ohio, a Hopewell site.

MAP courtesy ISAS

The Hopewell people, who lived in the region from about 100 B.C. to roughly A.D. 400, have long been the subject of speculation, as the artifacts they left behind and the manner in which these goods were disposed of are not easily understood. Those living in southeastern Ohio, especially, seemed to be “conspicuous consumers and connoisseurs of the exotic,” Emerson said.

The Hopewell people from that area collected “massive assemblages of obsidian from Wyoming, mica from the Appalachians, and caches of elaborately carved pipes,” Emerson said. They also collected shells from the Gulf Coast, along with the skulls of exotic animals (an alligator, for instance).

“Strange animals, strange minerals, strange things were really a focus,” he said.

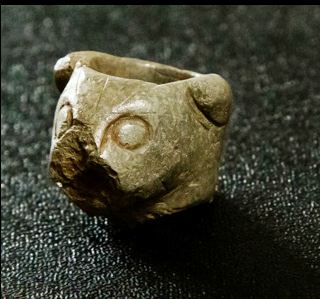

This pipestone fragment of an effigy pipe (an otter or bear; made from Sterling, Illinois, pipestone) was unearthed in 1968 in Jackson County, Illinois.
 Photo: L. Brian Stauffer (ISAS artifact)

Most of the carved stone pipes from that era have been found in Ohio, where very large caches often containing more than 100 pipes were ritually broken, burned and buried, Emerson said. The same style of pipes are found in Illinois, but many fewer have been uncovered in Illinois to date, he said, and they are dispersed, not heaped together in giant hordes as in Ohio.

(Watch a video about the Hopewell pipes.)

There is evidence of stone carving at the Illinois sources where the stone was gathered, but none at Tremper Mound, suggesting that the Illinois stone was carved into pipes before it was transported to Ohio.

The team used a variety of techniques to analyze the material in the quarries and the artifacts. One method, called X-ray diffraction (XRD), produces a distinct signal that reflects the proportion of minerals in different types of stone. The stone must be pulverized, however, to subject it to XRD. To analyze the intact pipes, the researchers used a non-destructive portable technology, called PIMA, which illuminates a specimen with short-wavelength infrared radiation and records the refracted (unabsorbed) wavelengths, allowing investigators to identify the minerals present. They verified the accuracy of the PIMA by comparing its results to those obtained with XRD on quarry specimens and broken pipes.

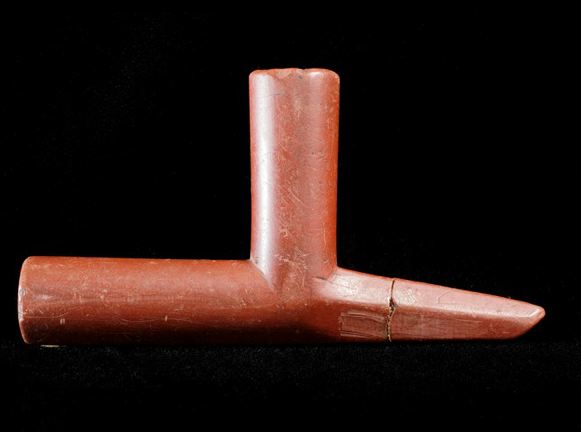

This Hopewell era platform pipe was discovered in Adams County, Illinois, in 1928. It is made of catlinite from Minnesota.

Photo: L. Brian Stauffer (ISAS artifact)

The new findings should challenge archaeologists to look more carefully at the evidence left behind by the Hopewell people, Emerson said.

“This study really says to the archaeological community, you need to go back to the drawing board,” he said. “You’ve been telling stories for decades that are based on essentially misinformation.”

The research team also included Kenneth Farnsworth, ISAS research associate; Sarah Wisseman, the director of the Program on Ancient Technologies and Archaeological Materials at ISAS; and Randall Hughes, a senior scientist at the Illinois State Geological Survey.

The National Science Foundation supported this research.

The ISAS and ISGS are units of the Prairie Research Institute at the University of Illinois.

Contacts and sources:

Diana Yates, Life Sciences Editor, U. I. News Bureau
University of Illinois at Urbana-Champaign
