From Classroom to Construction Site: Learning to Apply Structural Standards Like AISC

A study of 275 structural failures indicates that 65% stem from human error during maintenance and construction, while natural hazards like wind and snow also account for a large share of collapses. In this professional overview, we trace how engineers move from simplified classroom models to field-ready designs through thorough use of structural engineering standards like AISC 360.

Foundations: Understanding AISC 360

The Specification for Structural Steel Buildings (ANSI/AISC 360) represents the consolidated steel design standard, integrating Allowable Stress Design (ASD) and Load and Resistance Factor Design (LRFD). It defines member sizing, bolt and weld capacities, structural stability, fatigue, and inspection procedures.

Recent updates brought:

• Enhanced member strength provisions (Chapters D–H) via ANSI/AISC 360‑22.

• Greater clarity on inspection procedures in Chapter N.

• Defined support for T‑shaped member analyses under both 360‑10 and 360‑22 editions.

Bridging Classroom Theory and Field Reality

Academic models often rely on simplified, perfect geometry with static loads. Real structures face misalignment, variability in material properties, environmental forces, and erection tolerances. AISC 360 addresses this complexity with:

1. Strength and load combinations – Factored loads reflect real-world uncertainties.

2. Interaction checks – Combined stress states managed via unity utilization ratios. For instance, a member under both bending and axial load must satisfy a combined utilization limit where total demand doesn’t exceed capacity.

3. Robust connection rules – Including bolt preload, slip, bearing, weld types, and fatigue.

4. Inspection regimes – Chapter N mandates “observe” vs “perform” checks, assigning verification levels based on member criticality. Observe’ means visually confirming the task was completed; ‘perform’ requires physically conducting the check (e.g., bolt tension tests).

Implementation via Engineering Software: SDC Verifier

SDC Verifier, structural verification and analysis software, stands central in automating AISC 360 compliance. This software works independently and integrates seamlessly with major FEA platforms (ANSYS, Femap, Simcenter 3D). It supports ASD 1989, 360‑10, and 360‑22, including checks for member strength, bolt/weld capacity, stability, and T‑section behavior.

Key features include:

• Automated load combinations, unity ratio checks, buckling analysis, and bolt interaction reporting.

• Includes built-in checks for flexural and axial capacity of T-sections, aligned with Appendix F and Chapter E of AISC 360-22.

• Pre-built quality control workflows signaling required inspection levels per Chapter N.

• Detailed exportable reports, graphs, and visualization tools (e.g., unity ratio heat maps).

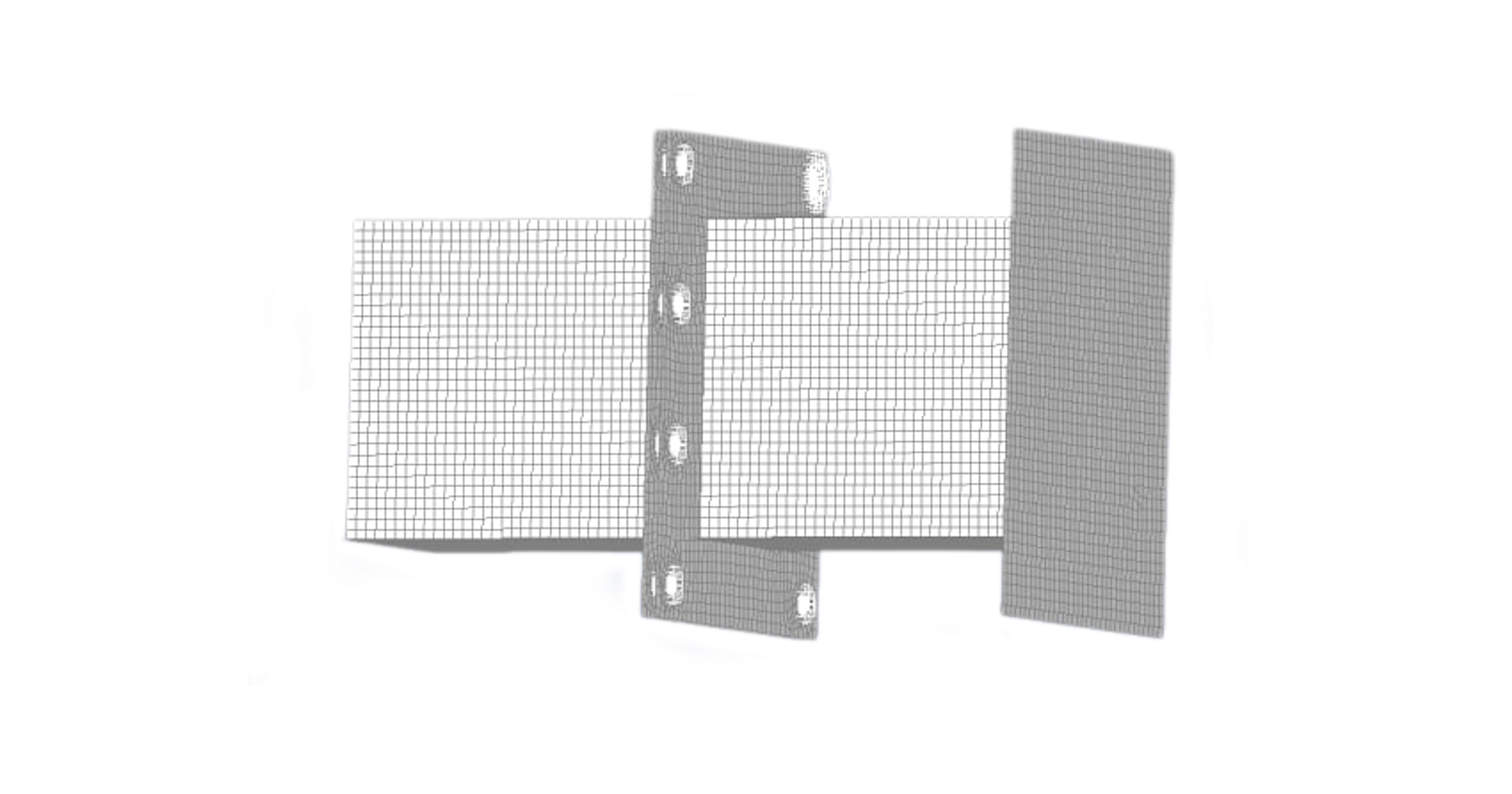

(SDC Verifier Model)

Field Workflow: Applying AISC 360

Modeling and Load Setup
Engineers start by creating or importing a structural model into software like SDC Verifier, ANSYS, Femap, or Simcenter 3D. They apply different types of loads—such as dead, live, wind, and seismic—based on ASCE 7. These loads are combined using factors defined by the code. AISC 360 then uses these load combinations to check the structure using either LRFD or ASD.

Member Checks
The software calculates internal forces and uses them to check each structural member. In LRFD, the strength of each member must be greater than the factored load. In ASD, the stress must stay below allowable limits. Members are checked for things like tension, compression, bending, shear, and their combinations, along with deflection and stability.

Connection Design
Welded and bolted connections are designed using AISC Chapter J rules. Special rules apply for hollow or boxed shapes (Chapter K). In seismic areas, the design must also meet AISC 341 for extra detailing and often use AISC 358 connections that are pre-approved for better performance during earthquakes.

Quality Assurance and Inspection
AISC Chapter N covers how to inspect the structure. Important parts need full inspections, while less critical ones may be checked randomly. Clear documentation, traceability, and proper inspection logs help ensure quality during construction.

Where AISC 360 Is Applied

AISC 360 is the foundational standard for steel design in a wide range of industries where safety, structural efficiency, and regulatory compliance are critical. Its versatility makes it suitable for projects from basic buildings to complex infrastructure.

The standard is heavily used in:

• Commercial and Industrial Buildings – Office towers, manufacturing plants, and warehouses rely on AISC 360 to ensure structural integrity under various loading scenarios.

• Oil & Gas Facilities – Offshore platforms and onshore processing units use AISC-based design for modules, pipe racks, and support structures, often combined with seismic and fatigue checks.

• Bridges and Transportation – Although primary bridge members follow AASHTO LRFD Bridge Design, secondary steel structures (e.g., equipment platforms, stair towers) often use AISC 360 for design checks.

• Energy and Utilities – Power plants, substations, and wind turbine towers often use AISC provisions for both static and dynamic structural verification.

• Heavy Machinery and Equipment Frames – In mining, construction, and marine sectors, custom steel frames and skids are frequently validated using AISC design methods.

Real-World Benefits

1. Design efficiency
   Automation accelerates project timelines, enabling rapid iterations on section sizing and connection tweaks based on analysis feedback.

2. Higher reliability
   AISC-aligned checks, combined with Chapter N inspection strategies, cover most failure modes—from buckling to fatigue. NIST best practices for progressive collapse also align with AISC strategies.

3. Code version control
   SDC Verifier’s alignment with AISC 360‑22 means projects stay current amid evolving criteria such as updated tension/compression interaction, shear lag factors, and load factors.

4. Documentation and audit readiness
   Detailed generated reports simplify communication with reviewers, authorities, and field teams, supporting traceable QA from design through execution.

Embedding AISC 360 into your verification software enables traceable, repeatable design across projects of any scale.

Conclusion

Grounding in AISC 360 provides structural engineers with a powerful, time-tested framework for safe and efficient steel building design. From idealized classroom calculations through site-focused execution, AISC 360 bridges theoretical and practical realms, particularly when supported by intelligent tools like SDC Verifier.

Adopting AISC 360 early in one’s career and embedding it into digital workflows empowers engineers to deliver secure, code-compliant steel structures that stand the test of time—virtually and physically.

Ready to bring AISC 360 into your digital workflow? Learn how SDC Verifier automates AISC 360 checks for your next steel design project.
